目前顯示： ThermoFisher 儀器及耗材 / Sorvall 離心機 Centrifuge
- Pico 17/21 (室溫型)
- Fresco 17/21 (冷凍型)

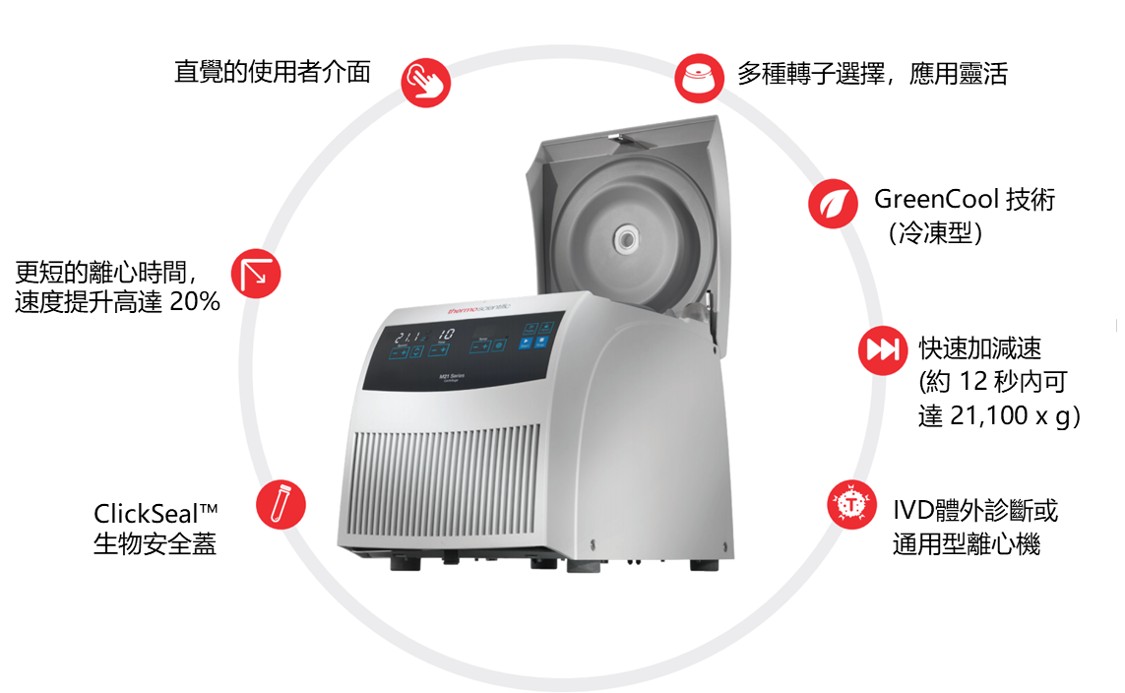

特點：
- Pico (Fresco) 17 最高轉速(離心力)：13300 rpm (17000xg)
- Pico (Fresco) 21 最高轉速(離心力)：14800 rpm (21100xg)
- 最大容量：24×1.5/2.0ml
- 時間設定：1~99分或連續
- 溫度設定：-9 ~ +40℃ (Fresco only)
- 噪音值：＜50dBA
- 免保養無碳刷式馬達驅動微電腦控制系統
- 獨特的ClickSealTM 生物防污染上蓋轉頭設計，保證優異的安全性及方便性
- 簡潔、醒目的控制及顯示面板，使條件設定及操作更加方便
- 高強度的轉子材料可耐受清潔及高溫高壓滅菌消毒
- 尺寸：(H×W×D)(mm)： Pico：225×243×352 Fresco：330×295×445
- 標準配備： 一個24孔×1.5/2.0ml轉子(C.A.M.R.認證防污染轉子)
- 另有 36孔×0.5ml轉子、18孔×(1.5/2.0ml+0.5ml)雙容量轉子、8連排0.2ml PCR管×8轉子、8連排0.2ml PCR管×4轉子及血比容管轉子可更換
訂購編號與轉子選擇：
| Ordering Information | 230V 50/60 Hz |
120V 60 Hz |
230V 50/60 Hz |
120V 60 Hz |
|---|---|---|---|---|
| Pico 17 | Fresco 17 | |||
| Heraeus microcentrifuge, includes 24 x 1.5/2.0 ml rotor with ClickSeal bio-containment lid | 75002410 | 75002411 | 75002420 | 75002421 |
| Heraeus microcentrifuge, includes hematocrit rotor | 75002491 | 75002492 | N/A | N/A |
| Pico 21 | Fresco 21 | |||
| Heraeus microcentrifuge, includes 24 x 1.5/2.0 ml rotor with ClickSeal bio-containment lid | 75002415 | 75002416 | 75002425 | 75002426 |
| Heraeus microcentrifuge, includes 24 x 1.5/2.0 ml rotor with ClickSeal bio-containment lid and dual row 18 x 2.0/0.5 ml rotor with screw-on lid | 75002475 | 75002477 | 75002475 | 75002478 |

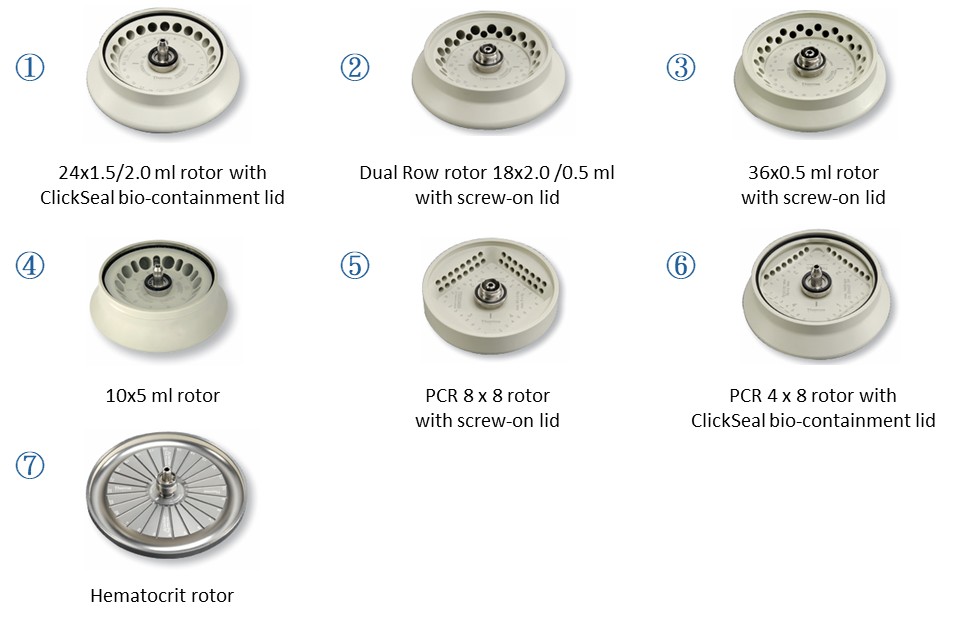

- 24 x 1.5/2.0 ml rotor with ClickSeal bio-containment lid
- 36 x 0.5 ml rotor with screw-on lid
- Dual Row rotor 18 x 2.0/0.5 ml with screw-on lid
- PCR 8 x 8 rotor with screw-on lid
- PCR 4 x 8 rotor with ClickSeal bio-containment lid
- Hematocrit rotor
| Description | Rotor Capacity | Max Tube Dimensions | MaxSpeed | MaxRCF | Cat.No. |
|---|---|---|---|---|---|
| 24 x 1.5/2.0 ml rotor with ClickSeal bio-containment lid |
24x1.5/2 | 11x50 | 14,800 | 21,100 | 75003424 |
| 0.5/0.6 ml microliter tube adapters, pack of 24 |
24x0.6/0.5 | 7x32 | 14,800 | 21,100 | 76003758 |
| 0.25/0.4 ml microliter tube adapters, pack of 24 |
24x0.4/0.25 | 6x24 | 14,800 | 21,100 | 76003759 |
| 0.2 ml PCR tube adapters, pack of 24 |
24x0.2 | 6x24 | 14,800 | 21,100 | 76003750 |
| 36 x 0.5 ml rotor with screw-on lid |
36x0.5 | 7x32 | 14,800 | 19,300 | 75003436 |
| Dual Row rotor 18 x 2.0 /0.5 ml with screw-on lid |
18x2/18x0.5 | 11x50 | 14,800 | 20,800 | 75003418 |
| PCR 8 x 8 rotor with screw-on lid |
64x0.2 | 6x24 | 14,800 | 17,100 | 75003489 |
| PCR 4 x 8 rotor with ClickSeal bio-containment lid |
32x0.2 | 6x24 | 14,800 | 16,200 | 75003440 |
| Hematocrit rotor | 24 Hematocrit Tubes | 14,800 | 16,800 | 75003473 |
| Replacement Lids | Cat.No. |
|---|---|
| ClickSeal bio-containment lid* | 75003410 |
| Replacement o-ring set for ClickSeal lid - 7500 3410 | 75003405 |
| Screw on lid | 75003406 |
