目前顯示： ThermoFisher 儀器及耗材 / Sorvall 離心機 Centrifuge
- LYNX 6000
- LYNX 4000
落地型LYNX超高速離心機系列
Thermo Scienctific Sorvall LYNX Superspeed Centrifuge series
最新一代的功能設計特點，簡易的完成每一次實驗的操作
超大容量離心機
LYNX4000 = 4公升容量 68905xg
LYNX6000 = 6公升容量 100605xg
獨有特點：
- 單手操作的轉子自動扣鎖鎖定，快速更換、無需工具
- 轉子自動辨識，觸控式介面，立即的設定各項條件及程選擇
- 碳纖維轉子，傑出的經濟效能和表現
- 單手操作，防止檢體污染的生物安全防護蓋設計
獨有之特點設計，滿足實驗者所有的需求
- Auto-ID轉子鑑識系統，節省操作時間，並可密碼設定，保護程式使用的安全。
- LCD觸控螢幕，可顯示rotor型號，即時設定所需條件，並可以圖形化顯示運轉進度。
- 面板即時教學影片與快速上手手冊。
- 轉子計算器功能，可精算使用不同廠牌型號之轉子之相對修件（適用LYNX機型）。
- 可報告輸出及協助GMP/GLP流程。
- 更舒適的人體工學設計，腳尖可深入機身底部，減少使用者腰部負擔。
- 具碳纖維轉子可供選擇，輕量化，可大幅縮短離心時間，提高離心效率。
- 運用範圍廣泛，含定角式、水平與連續流，共有21種轉子可供選擇。
- Easily set current parameter and monitor centrifuge status
- Lightweight rotors with speed handels
- Foot space for better rotor placement ergonomics
- USB port for downloading run date
Applications simplified at every turn
The extensive rotor portfolio for the Sorval LYNX superspeed centrifuge series supports labware from Microplates, to microtubes, to 1 Liters bottles – providing applications flexibility for years to come, Even as your lab’s research focus evolves.
Innovative Rotor Convenience
- Accelerate and simplify rotor lid tightening, ensuring lid’s property attached with new speed handles
- Store rotor lid with on-board lid holder
Thermo Scientific rotors are available for a wide range of processing needs – Cellular Biology
- Diagnostic and Clinical Biology
- Genomics and Molecular Biology
- Proteomics
- Virus and Nanotechnology
- Research and Drug Discovery
- Bioprocessing
落地型超高速離心機特點
| Thermo Scientific Sorvall LYNX 6000 Superspeed Centrifuge | Thermo Scientific Sorvall LYNX 4000 Superspeed Centrifuge | |||
|---|---|---|---|---|
| 最大容量 | Fixed Angle Rotor: 6 Liters (6x1000) 9,000rpm / 17,568xg |
Swinging Bucket Rotor: 4 Liters (4x1000) 24 microplates, 40x50mL or 96x15ml conical tubes 5,500rpm / 7,068xg |
Fixed Angle Rotor: 4 Liters (４x1000) 10,500rpm / 20,584xg |
Swinging Bucket Rotor: 4 Liters (4x1000) 24 microplates, 40x50mL or 96x15ml conical tubes 5,500rpm / 7,068xg |
| 最高轉速 | 29,000 rpm | 24,000 rpm | ||
| 最大離心力 | 100,650 xg (with T29-8x50 rotor) | 68,905 xg (with A27-8x50 rotor) | ||
| 轉子鎖定系統 | Auto-Lock | Auto-Lock | ||
| 轉子鑑識系統 | Auto-ID Instant, Automatic | Auto-ID Instant, Automatic | ||
| 驅動系統 | High Torque Brushless | High Torque Brushless | ||
| 不平衡偵測系統 | 5% of Opposing Loads* | 5% of Opposing Loads* | ||
| 抽真空系統 | Smart Vacuum | No Vacuum | ||
| HEPA過濾網 | Optional | Not Available | ||
| 綠能科技 | Green Mode, Smart Vacuum | Green Mode | ||
| 控制面板 | Touchscreen Interface | Touchscreen Interface | ||
| 加減速設定 | 9 Accel, 10 Decel | 9 Accel, 10 Decel | ||
| 轉速調整範圍 | Minimum 500 rpm, Maximum 29,000 rpm | Minimum 500 rpm, Maximum 24,000 rpm | ||
| 轉速精確度 | ± 25 rpm | ± 25 rpm | ||
| 時間設定範圍 | 99 hours, hold | 99 hours, hold | ||
| 預冷功能 | Yes | Yes | ||
| 溫度設定範圍 | -20 to +40 ℃ | -10 to +40 ℃ | ||
| 溫度精確度 | ± 2 ℃ | ± 2 ℃ | ||
| ACE Integrator (w2t) | Yes | Yes | ||
| 連續流功能 | Yes | No | ||
| 其它功能 | Multilingual Selection, Rotor Calculator, On-Board Training Videos, User Logging, User Lock-Out, Automatic Door Opening, Rotor Speed Handle | Multilingual Selection, Rotor Calculator, On-Board Training Videos, User Logging, User Lock-Out, Automatic Door Opening, Rotor Speed Handle | ||
| Instrument Bolt Down | Not Required, Optional Seismic Bolt Down | Not Required, Optional Seismic Bolt Down | ||
| 尺寸(HxDxW) | 930 x 805 x 700 mm / 36.6 x 31.7 x 27.6 in | 930 x 805 x 700 mm / 36.6 x 31.7 x 27.6 in | ||
| 工作高度 | 860 mm / 33.9 in | 860 mm / 33.9 in | ||
| 重量 | 293 kg / 644 lb | 283 kg / 622 lb | ||
| 熱能輸出 | < 2.0 kW | < 3.2 kW | ||
| 噪音值 | < 59 dBA | < 59 dBA | ||
| 通過認證 | cULus, CE;IEC 61010-2-020 2nd Ed. or later, ROHS, WEEE | cULus, CE;IEC 61010-2-020 2nd Ed. or later, ROHS, WEEE | ||
| 電力需求 | 200-240 V, 50/60 Hz, 30 A, Single Phase (with Polyphase compatibility) | 200-240 V, 50/60 Hz, 30 A, Single Phase (with Polyphase compatibility) | ||
| 保固 | 1Yr Unit, 3 Yrs Drive, 5 Yrs Refrigeration | 1Yr Unit, 3 Yrs Drive, 5 Yrs Refrigeration | ||
*Fiberlite F9-6x1000 rotor limited to 25 gr imbalance; BIOFlex HC rotor limited to 20 gr imbalance.
1 Subject to Thermo Fisher Scientific’s standard limited warranty. See thermoscientific.com or your sales representative for details.
| 訂購編號 | |
|---|---|
| Cat. No. | Description |
| 75006590 | Sorvall LYNX 6000 Superspeed Centrifuge |
| 75006580 | Sorvall LYNX 4000 Superspeed Centrifuge |
| 75000011 | HEPA Filter for Sorvall LYNX 6000 Centrifuge |
Optimize the Performance of Your Centrifuge

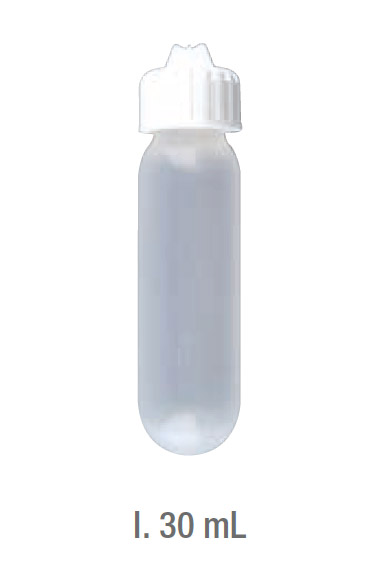

It's simple. From 1 L bottles, to 15 and 50 mL conical tubes, to microplates and tissue culture flasks, the versatile selection oh Thermo Scientific Nalgene and Nunc centrifugation products work seamlessly with your complete centrifuge and rotor system, bringing together best-in-class quality and performance.
