  1. Owl 垂直電泳槽系列
加入詢價單

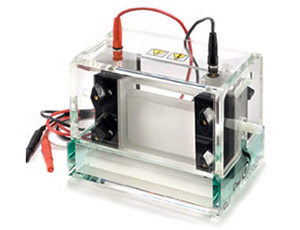

P8DS Dual Gel System

  • 最大電泳膠：10 x 8 ~ 10 cm
  • 檢體數：20
  • 外部尺寸：17 x 13 x 14 (H)cm
  • UPPER Buffer：150 ml
  • LOWER Buffer：150 ml
  • 可快速而簡單的進行單片或雙片垂直電泳
  • 附冷卻鋁板，upper chamber可搭配外部循環快速冷卻
  • SuperSafe防失誤上蓋，電極不會裝錯。
  • 歷經長期使用證明，堅固耐用
  • 簡單快速的旋鈕式鑄膠系統
  • 操作的簡單，快速的跑膠，最佳的結果

整組標準配件

  • Upper Buffer Chamber with Internal Cooling Core
  • Lower Buffer Chamber
  • SuperSafe Lid with Attached Power Supply Leads
  • 4 Blank Glass Plates
  • 2 Notched Glass Plates
  • 2 Notched Alumina Plates
  • Spacer Set: 0.8 mm Thick
  • Blocking Plate for Single Gel Operation
  • Spacer Placer
  • 2 Combs: 10 Well, 0.8 mm Thick
加選購齒梳Comb
CAT. NO. TYPE 齒數 厚度 寬度 EST Well Volume
MP-10A Standard 10 0.5mm 5.7mm 46µl
MP-10C Standard 10 0.8mm 5.7mm 73µl
MP-10D Standard 10 1.5mm 5.7mm 134µl
MP-12A Standard 12 0.5mm 4.3mm 34µl
MP-12C Standard 12 0.8mm 4.3mm 55µl
MP-12D Standard 12 1.5mm 4.3mm 103µl
MP-15A Standard 15 0.5mm 2.9mm 23µl
MP-20A Standard 20 0.5mm 1.6mm 13µl
MP-6A Standard 6 0.5mm 11.1mm 89µl
MP-6C Standard 6 0.8mm 11.1mm 142µl
MP-6D Standard 6 1.5mm 11.1mm 266µl
MP-8A Standard 8 0.5mm 7.7mm 62µl
MP-8C Standard 8 0.8mm 7.7mm 99µl
MP-8D Standard 8 1.5mm 7.7mm 185µl
加選購配件 Cat. No.
JGC-4 Gel Casting System Gel Size: 10 x 10 cm
Footprint: (W x L x H) 13 x 13 x 11 cm		 JGC-4
Frosted Glass, (W x H x L) 10 x 10 x 0.24 cm P7-10FG
Frosted Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10FR
Blank Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10G
Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10R
Notched Alumina, (W x L x H) 10 x 10 x 0.10 cm P7-10RA
Gradient Gel Caster Gel Size: (W x L) 10 x 10 cm
Footprint: (W x L x H) 15 x 13 x 13 cm		 P7-CST
Spacer Set, (W x H) 0.50 x 0.50 cm P7-SA
Spacer Set, (W x H) 0.50 x 0.08 cm P7-SC
Spacer Set, (W x H) 0.50 x 0.15 cm P7-SD
Side Clamps (1 pair.) P8-CL
Upper Buffer Chamber Assembly P8DS-001
Lower Buffer Chamber P8DS-008
SuperSafe Lid with Attached Power Supply Leads P8DS-012
Blocking Plate P8DS-016
Complete System with JGC-4 P8DS-1
P8DS Apparatus Only P8DS-3
Thermo Scientific Owl Power Supply Leads PSL-5
Wing Knob R10446
Replacement Gaskets, White (1 pair.) R12009
Sponge Tips (Pkg. of 10.) ST-10

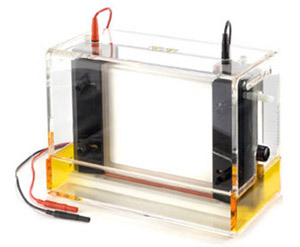

P9DS Dual Gel System

  • 最大電泳膠：16 x 14 ~ 16 cm
  • 檢體數：30
  • 外部尺寸：25 x 13 x 19.5 (H)cm
  • UPPER Buffer：200 ml
  • LOWER Buffer：350 ml
  • 可快速而簡單的進行單片或雙片垂直電泳
  • 附冷卻鋁板，upper chamber可搭配外部循環快速冷卻
  • SuperSafe防失誤上蓋，電極不會裝錯。
  • 歷經長期使用證明，堅固耐用
  • 簡單快速的旋鈕式鑄膠系統
  • 操作的簡單，快速的跑膠，最佳的結果
  • 2D電泳最佳選擇

整組標準配件

  • Upper Buffer Chamber with Internal Cooling Core
  • Lower Buffer Chamber
  • SuperSafe Lid with Attached Power Supply Leads
  • 4 Blank Glass Plates
  • 4 Notched Glass Plates
  • 4 Combs: (2) 10 Well and (2) 15 Well, 1.5 mm Thick
  • Spacer Set: 1.5 mm Thick
  • Blocking Plate for Single Gel Operation
  • Spacer Placer
加選購齒梳Comb
CAT. NO. TYPE 齒數 厚度 寬度 EST Well Volume
P1-10C Standard Comb 10 0.8mmm 10.4mm 183µl
P1-10D Standard Comb 10 1.5mm 10.4mm 343µl
P1-15C Standard Comb 15 0.8mm 6.1mm 107µl
P1-15D Standard Comb 15 1.5mm 6.1mm 201µl
P1-20C Standard Comb 20 0.8mm 3.9mm 69µl
P1-20D Standard Comb 20 1.5mm 3.9mm 129µl
P1-24C Standard Comb 24 0.8mm 2.9mm 51µl
P1-24D Standard Comb 24 1.5mm 2.9mm 96µl
P1-PREP Prep Comb 2 1.5mm 120/5mm 363/16µl
加選購配件 Cat. No.
Gel Casting System Gel Size: (W x L) 16 x 14 cm
Footprint: (W x L x H) 18 x 17 x 15 cm		 JGC-2
Offset Glass, (W x L x H) 16 x 12 x 0.32 cm P1-12G
Frosted Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14FG
Frosted Notched Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14FR
Blank Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14G
Notched Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14R
Multiple Gradient Gel Caster Gel Size: (W x L) 16 x 14 cm
Footprint: (W x L x H) 20 x 13 x 18 cm		 P1-CST
Spacer Set, (W x L x H) 1 x 14 x 0.08 cm P1-SC
Spacer Set, (W x L x H) 1 x 14 x 0.15 cm P1-SD
Side Clamps (1 pair.) P9-CL
Upper Buffer Chamber Assembly P9DS-001
Blocking Plate P9DS-006
Lower Buffer Chamber P9DS-008
SuperSafe Lid with Attached Power Supply Leads P9DS-012
P9DS-2 Owl JGC-2 Gel Casting System P9DS-1
P9DS-2 Apparatus Only P9DS-3
Replacement Gaskets (1 pair.) P9-GK
Thermo Scientific Owl Power Supply Leads PSL-5
Wing Knob R10446
Sponge Tips (Pkg. of 10.) ST-10

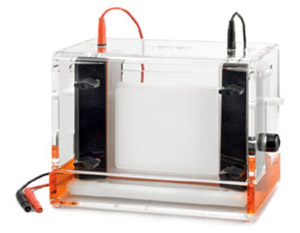

P10DS Dual Gel System

  • 最大電泳膠：20 x 20 cm
  • 檢體數：40
  • 外部尺寸：31 x 16.5 x 23 (H)cm
  • UPPER Buffer：650 ml
  • LOWER Buffer：500 ml
  • 可快速而簡單的進行單片或雙片垂直電泳
  • 附冷卻鋁板，upper chamber可搭配外部循環快速冷卻
  • SuperSafe防失誤上蓋，電極不會裝錯。
  • 歷經長期使用證明，堅固耐用
  • 簡單快速的旋鈕式鑄膠系統
  • 操作的簡單，快速的跑膠，最佳的結果
  • 大量檢體或須長距離分離電泳的唯一選擇

整組標準配件

  • Upper Buffer Chamber with Internal Cooling Core
  • Lower Buffer Chamber
  • SuperSafe Lid with Attached Power Supply Leads
  • 4 Blank Glass Plates
  • 4 Notched Glass Plates
  • 4 Combs: (2) 15 Well & (2) 20 Well, 1.5 mm Thick
  • Spacer Set: 1.5 mm Thick
  • Blocking Plate for Single Gel Operation
  • Spacer Placer
加選購齒梳Comb
CAT. NO. TYPE 齒數 厚度 寬度 EST Well Volume
P2-10C Standard Comb 10 0.8mmm 13.6mm 239µl
P2-10D Standard Comb 10 1.5mm 13.6mm 449µl
P2-15C Standard Comb 15 0.8mm 8.2mm 144µl
P2-15D Standard Comb 15 1.5mm 8.2mm 271µl
P2-20C Standard Comb 20 0.8mm 5.5mm 97µl
P2-20D Standard Comb 20 1.5mm 5.5mm 182µl
P2-25C Standard Comb 25 0.8mm 3.9mm 69µl
P2-25D Standard Comb 25 1.5mm 3.9mm 129µl
P2-PREP Prep 2 1.5mm 148/4.7 488/155µl
加選購配件 Cat. No.
Gel Casting System Gel Size: (W x L) 20 x 20 cm
Footprint: (W x L x H) 23 x 17 x 17 cm		 JGC-3
Offset Glass, (W x L x H) 20 x 18 x 0.32 cm P10-18G
Blank Glass, (W x L x H) 20 x 20 x 0.32 cm P10-20G
Notched Glass, (W x L x H) 20 x 20 x 0.32 cm P10-20R
Side Clamps (1 pair.) P10-CL
Upper Buffer Chamber Assembly P10DS-001
Blocking Plate P10DS-006
Lower Buffer Chamber P10DS-008
SuperSafe Lid with Attached Power Supply Leads P10DS-012
Owl P10DS-2 with Owl JGC-3 Casting System P10DS-1
P10DS-2 Apparatus Only P10DS-3
Replacement Gaskets (1pair.) P10-GK
Offset Glass Offset Glass, (W x L x H) 20 x 18 x 0.48 cm P2-18G
Frosted Blank Glass,(W x L x H) 20 x 20 x 0.48 cm P2-20FG
Frosted Notched Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20FR
Blank Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20G
Notched Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20R
Multiple Gradient Gel Caster Gel Size: (W x L) 20 x 20 cm
Footprint: (W x L x H) 25 x 13 x 23 cm		 P2-CST
Spacer Set, (W x H) 1 x 0.08 cm P2-SC
1.0 x 1.5 mm Spacer Set P2-SD
Thermo Scientific Owl Power Supply Leads PSL-5
Wing Knob R10446
Sponge Tips (Pkg. of 10.) ST-10

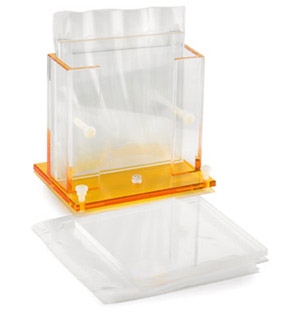

JGC-3 Gel Casting System
垂直電泳槽專用鑄膠系統

  • 適用於Owl P10DS 垂直電泳槽
  • 可以簡單快速的鑄1~4片垂直電泳膠
  • Gel Size: (W x L) 20 x 20 cm
  • Footprint: (W x L x H) 23 x 17 x 17 cm

A patented system that lets leaking work to your advantage.

加選購配件 Cat. No.
Gel Pouches (W x L) 20 x 20 cm (Pkg. of 100.) GP3-100
Gel Pouches, (W x L) 20 x 20 cm (Pkg. of 25.) GP3-25
Spacer Placer (Pkg. of 3.) JG3-PL
Offset Glass, (W x L x H) 20 x 18 x 0.32 cm P10-18G
Blank Glass, (W x L x H) 20 x 20 x 0.32 cm P10-20G
Notched Glass, (W x L x H) 20 x 20 x 0.32 cm P10-20R
Offset Glass Offset Glass, (W x L x H) 20 x 18 x 0.48 cm P2-18G
Frosted Blank Glass,(W x L x H) 20 x 20 x 0.48 cm P2-20FG
Frosted Notched Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20FR
Blank Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20G
Notched Glass, (W x L x H) 20 x 20 x 0.48 cm P2-20R
Prep P2-PREP
Spacer Set, (W x H) 1 x 0.08 cm P2-SC
1.0 x 1.5 mm Spacer Set P2-SD
Leveling Screw 2.5 cm R10013
Clamping Screw 5 cm R10014

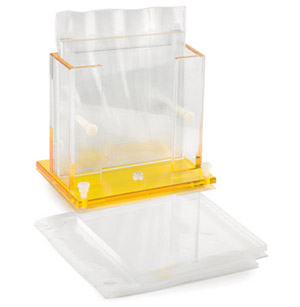

JGC-2 Gel Casting System
垂直電泳槽專用鑄膠系統

  • 適用於Owl P9DS 垂直電泳槽
  • 可以簡單快速的鑄1~4片垂直電泳膠
  • Gel Size: (W x L) 16 x 14 cm
  • Footprint: (W x L x H) 18 x 17 x 15 cm

A patented system that lets leaking work to your advantage.

加選購配件 Cat. No.
Gel Pouches, (W x L) 16 x 14 cm (Pkg. of 100.) GP2-100
Gel Pouches, (W x L) 16 x 14 cm (Pkg. of 25.) GP2-25
Spacer Placer (Pkg. of 3.) JG2-PL
Blocking Plate, (W x L) 16 x 14 cm JGC2-0003
Offset Glass, (W x L x H) 16 x 12 x 0.32 cm P1-12G
Frosted Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14FG
Frosted Notched Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14FR
Blank Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14G
Notched Glass, (W x L x H) 16 x 14 x 0.32 cm P1-14R
Spacer Set, (W x L x H) 1 x 14 x 0.08 cm P1-SC
Spacer Set, (W x L x H) 1 x 14 x 0.15 cm P1-SD
Leveling Screw 2.5 cm R10013
Clamping Screw 5 cm R10014

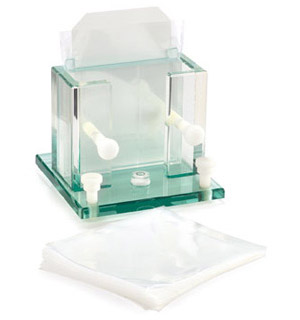

JGC-4 Gel Casting System
垂直電泳槽專用鑄膠系統

  • 適用於Owl P8DS 垂直電泳槽
  • 可以簡單快速的鑄1~4片垂直電泳膠
  • Gel Size: (W x L) 10 x 10 cm
  • Footprint: (W x L x H) 13 x 13 x 11 cm

整組標準配件

  • Casting Stand
  • Blocking Plate
  • 3 Point Leveling Base
  • Spacer Placer
  • 25 Gel Pouches
加選購配件 Cat. No.
Gel Pouches, (W x L) 10 x 10 cm (Pkg. of 100.) GP4-100
Gel Pouches, (W x L) 10 x 10 cm (Pkg. of 25.) GP4-25
Spacer Placer (Pkg. of 3.) JG4-PL
Frosted Glass, (W x H x L) 10 x 10 x 0.24 cm P7-10FG
Frosted Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10FR
Blank Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10G
Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10R
Notched Alumina, (W x L x H) 10 x 10 x 0.10 cm P7-10RA
Spacer Set, (W x H) 0.50 x 0.50 cm P7-SA
Spacer Set, (W x H) 0.50 x 0.08 cm P7-SC
Spacer Set, (W x H) 0.50 x 0.15 cm P7-SD
Leveling Screw 2.5 cm R10013
Clamping Screw 5 cm R10014

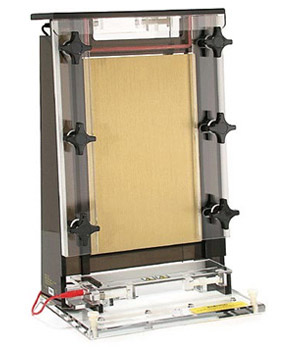

S4S Aluminum Backed

  • 最大電泳膠：W20 x L45 cm
  • 檢體數：39
  • 外部尺寸：27 x 23 x 50 (H)cm
  • UPPER Buffer：300 ml
  • LOWER Buffer：500 ml
  • 可快速而簡單的進行單片垂直定序電泳
  • 附冷卻鋁板，可搭配外部循環快速冷卻
  • 歷經長期使用證明，堅固耐用
  • 簡單快速的旋鈕式鑄膠系統
  • 操作的簡單，快速的跑膠，最佳的結果
    Easy set-up with even heat distribution for "smile" free results.

整組標準配件

  • UBC with Removable Drain Bottle
  • Safety Interlocking Lid with Attached Power Supply Leads
  • Removable LBC with Safety Interlocking Lid and Attached Power Supply Lead
  • Anodized Aluminum Heat Sink
  • 2 Side Clamps
  • 2 Blank Glass Plates
  • 2 Notched Glass Plates
  • 2 Sharktooth Combs: 39 Teeth, 0.4 mm Thick
  • 1 Well Comb: 20 Well, 0.4 mm Thick
  • Spacer Set, 0.4 mm Thick
  • 1 Adhesive Temperature Indicator
加選購齒梳Comb
CAT. NO. TYPE 齒數 厚度 寬度 EST Well Volume
S1S-20A Well 20 0.4mm 6.8mm 15µl
S1S-30A Well 30 0.4mm 4.1mm 9µl
S1S-MT2 Sharktooth Micro Well 36 (2x) 0.4mm n/a 10µl
S1S-MT3 Sharktooth Micro Well 55 (3x) 0.4mm n/a 5µl
S1S-MT42 Sharktooth Micro Well 73 (4x) 0.2mm n/a 2µl
S1S-MT44 Sharktooth Micro Well 73 (4x) 0.4mm n/a 3µl
S1S-SHARK2 Sharktooth 39 0.2mm n/a 5µl
S1S-SHARK4 Sharktooth 39 0.4mm n/a µl
加選購配件 Cat. No.
Thermo Scientific Owl Power Supply Leads PSL-5
Buffer Drain Bottle R10384
Offset Glass, (W x L x H) 20 x 43 x 0.32 cm S1S-43G
Blank Glass, (W x L x H) 20 x 45 x 0.32 cm S1S-45G
Notched Glass, (W x L x H) 20 x 45 x 0.32 cm S1S-45R
Spacer Set, (W x L x H) 1 x 45 x 0.02 cm S2S-SA2
Spacer Set, (W x L x H) 1 x 45 x 0.04 cm S2S-SA4
Wedge, (W x H) 1.0 cm x 0.4 cm (Pkg. of 2.) S2S-SAW
Side Clamps (1 pair.) S3S-CL
Replacement Knob S3S-KNOB
Replacement Gasket S4S-GK
Sponge Tips (Pkg. of 10.) ST-10
Stopcocks (1 pair.) STK-10
Adhesive Temperature Indicator (Pkg. of 5.) TEMP-5

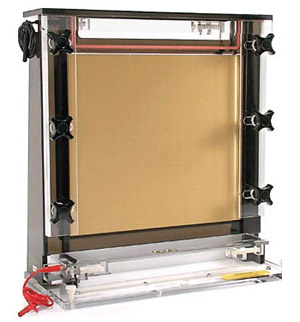

S3S Aluminum Backed

  • 最大電泳膠：W35 x L45 cm
  • 檢體數：78
  • 外部尺寸：44 x 23 x 50 (H)cm
  • UPPER Buffer：500 ml
  • LOWER Buffer：300 ml
  • 可快速而簡單的進行單片垂直定序電泳
  • 附冷卻鋁板，可搭配外部循環快速冷卻
  • 歷經長期使用證明，堅固耐用
  • 簡單快速的旋鈕式鑄膠系統
  • 操作的簡單，快速的跑膠，最佳的結果
  • 一般定序電泳最佳選擇

整組標準配件

  • UBC with Removable Drain Bottle
  • Safety Interlocking Lid and Attached Power Supply Lead
  • Removable LBC with Safety Interlocking Lid with Attached Power Supply Lead
  • Anodized Aluminum Heat Sink
  • Built-in Side Clamps
  • 2 Blank Glass Plates
  • 2 Notched Glass Plates
  • 2 Sharktooth Combs: 78 Teeth, 0.4 mm Thick
  • 1 Well Comb, 40 Well, 0.4 mm Thick
  • 2 Spacer Sets, 0.4 mm Thick
  • 1 Adhesive Temperature Indicator
加選購齒梳Comb
CAT. NO. TYPE 齒數 厚度 寬度 EST Well Volume
S2S-40A Well 40 0.4mm 6.8mm 15µl
S2S-60A Well 60 0.4mm 4.1mm 9µl
S2S-MT2 Micro Well 72 (2x) 0.4mm n/a 10µl
S2S-MT3 Sharktooth Micro Well 110 (3x) 0.4mm n/a 5µl
S2S-MT42 Sharktooth Micro Well 146 (4x) 0.2mm n/a 2µl
S2S-MT44 Sharktooth Micro Well 146 (4x) 0.4mm n/a 3µl
S2S-SHARK2 Sharktooth 78 0.2mm n/a 5µl
S2S-SHARK4 Sharktooth 78 0.4mm n/a 9µl
加選購配件 Cat. No.
Thermo Scientific Owl Power Supply Leads PSL-5
Replacement Bottle R10383
Offset Glass, (W x L x H) 35 x 43 x 0.48 cm S2S-43G
Blank Glass, (W x L x H) 35 x 45 x 0.48 cm S2S-45G
Notched Glass, (W x L x H) 35 x 45 x 0.48 cm S2S-45R
Spacer Set, (W x L x H) 1 x 65 x 0.02 cm S2SL-SA2
Spacer Set, (W x L x H) 1 x 45 x 0.04 cm S2S-SA4
Wedge, (W x H) 1.0 cm x 0.4 cm (Pkg. of 2.) S2S-SAW
Side Clamps (1 pair.) S3S-CL
Replacement Gasket S3S-GK
Replacement Knob S3S-KNOB
Sponge Tips (Pkg. of 10.) ST-10
Stopcocks (1 pair.) STK-10
Adhesive Temperature Indicator (Pkg. of 5.) TEMP-5
