產品型錄
產品資訊
目前顯示:
特點:
- Swinging Bucket Rotors:
- 最大容量:4x1000ml (with TX-1000 rotor)
- 最大轉速:5300 rpm (with BIOShield 1000A rotor)
- 最大離心力:5590 xg (with BIOShield 1000A rotor)
- Fixed Angle Rotors:
- 最大容量:6x250ml (with F14-6 x 250LE rotor)
- 最大轉速:15200 rpm (with microvolume rotors)
- 最大離心力:25830 xg (with 30x2ml rotor)
- 控制系統:微電腦自動控制,LCD大型顯示幕,數字式薄膜按鍵獨立設定,可分別顯示設定轉速、設定時間、實際時間、設定溫度、實際溫度、加/減速、rpm/rcf值轉換及bucket認證碼
- 驅動系統:免保養無碳刷式低功率馬達驅動
- Auto-Lock III 轉子自動鎖定系統
- SMARTSPin 轉子管理技術系統,可有效監控加速、減速、不平衡偵測及轉子自動辨識功能
- 程式組:99組( 5組直按,P4組folder儲存)
- 溫度設定:
- -10℃~ +40℃,具預冷功能( Multifuge X3FR only)
- 雙溫度選擇設定功能,可選擇設定Air/Chamber 溫度或Sample 溫度
- 冷凍系統:CFC free 環保冷媒,快速冷凍,15分鐘內即可降至4℃ ( Multifuge X3FR only)
- 具快速離心功能
- 加/減速設定:9段/10段
- 時間設定:
- 9小時, 99分或99分,99秒或連續
- 雙時間選擇設定功能,可選擇設定At Start或At Speed
- 噪音值:小於57dBA
- 其他特點:
- 認證之ClickSeal 生物安全防護蓋系統
- 多種語言選擇設定系統
- 電動門上開及下壓系統
- 程式及開門密碼設定安全系統
- BIOLiner 超大容量生物安全防護認證轉子系統
- 獨有之Carbon Fiber 轉子系統
- 尺寸(HxWxD):
- Multifuge X3F:79x55x67(cm)
- Multifuge X3FR:79x55x67(cm)
- 製造規範符合IEC 61010-1, IEC 61010-2-020,IEC 61010-2-101, EN292, EN61326, EN55011B等 認證標準
- 安全與性能通過UL, CSA, CE, IVD, Certified Biosafety等認證
- 適用性廣,共計有12種轉子可供更換

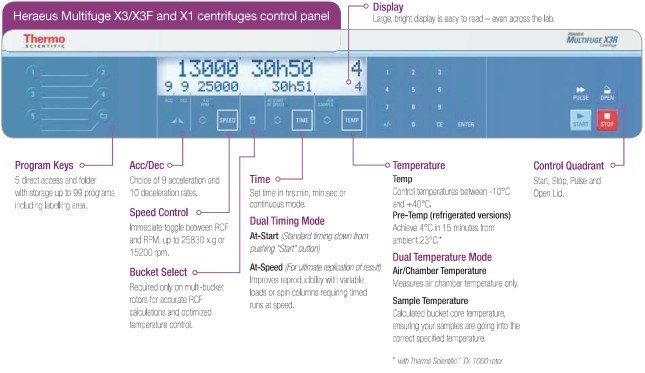

Program Keys | 5 direct access and folder with storage up to 99 programs including labelling area. |
---|---|
Acc/Dec | Choice of 9 acceleration and 10 deceleration rates |
Speed Control | Immediate toggle between RCF and speed control, up to 25830 x g or 15200 rpm |
Bucket Select | Required only on multi-bucket rotors for accurate RCF calcaulations and optimized temperature control. |
Time | Set timein hrs:min, min:sec or continuous mode. |
Dual Timing Mode | At-Start (Standard timing down from pushing “Start” button) At-Speed (For ultimate replication of result) Improves reproducibility with variable loads or spin columns requiring timed runs at speed. |
Temperature | Temp Control temperatures between -10°C and +40°C Pre-Temp (refrigerated versions) Achieve 4°C in 15 minutes from ambient 23°C* |
Dual Temperature Mode | Air/Chamber Temperature Measures air chamber temperature only. Sample Temperature Calculated bucket core temperature, ensuring your samples are going into the correct specified temperature. *with Thermo ScientificTM TX-1000 rotor |
Control Quadrant | Start, Stop, Pulse and Open Lid. |
* 獨有特點介紹:
- Auto-Lock Ⅲ 轉子自動鎖定系統:
- 1. 裝入轉子,只需將轉子安置進離心槽,轉子即自動扣鎖鎖定,更換轉子也只需按下按鈕 即可拆卸,無凹槽及方向性,不需工具,方便清理主機及轉子

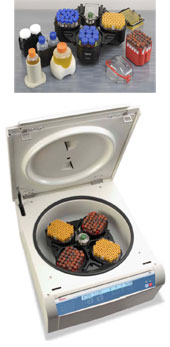

- BIOLiner生物安全防護認證超大容量轉子系統:
- 1. 超大容量設計可放
- 4x500ml Corning 圓錐型瓶
- 4x250ml Corning 圓錐型瓶
- 8×175-250ml B.D. Falcon, Nunc Nalqene管
- 40×50ml 離心管
- 88×15ml 離心管
- 148×10ml 真空採血管
- 196×7ml 真空採血管
- 16×96孔盤
- 2. 可使用生物安全防護認證蓋
- 3. 節省能源、時間、金錢
- 1. 超大容量設計可放
- Carbon Fiber材質轉子:
- 1. 具有多款獨有之Carbon Fiber材質轉子可供選擇使用。
- 2. 具韌性強,重量輕、保溫性良、節省能源消耗,不易裂開等優良特性,15年保修。
- Click Seal Bio-containment (生物安全防護蓋)系統:
- 1. 取代傳統螺旋鎖蓋,採按壓卡式設計,只需單手即可開關,減少檢體污染機會
- 2. PEI材質生物安全防護蓋,具高抗化學性及抗高溫性
- 3. 通過CAMR認證生物安全防污染標準
